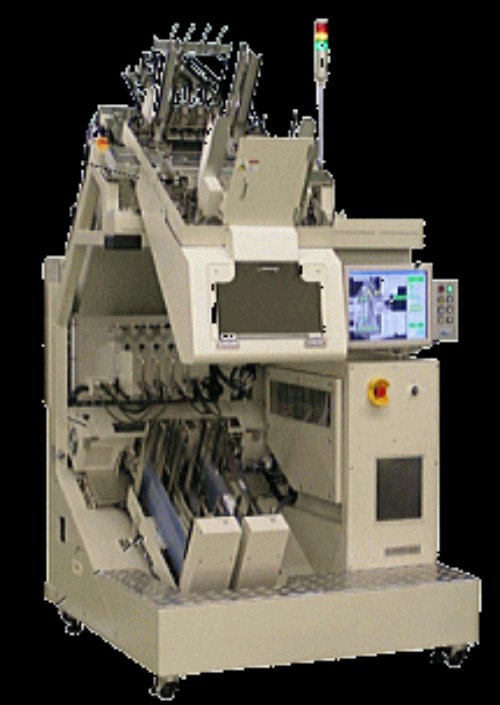

4330-IH
4330-IH is a sophisticated gravity tri-temp handler, and its large capacity chamber is suitable to environment measurement for Power device such as TO220, D-PAK, D2-PAK, DIP. High UPH(8000pcs) is accomplished by integrating 8(Max) test units (when socket contactor used) with TO220 and D2PAK running. High temperature accuracy ±2℃ is also realized in the temperature range of Low temp(-50℃～0℃) as well as High Temp(50℃～150℃).
| Specifications |
| Model |
4330-IH |
| Applicable Device |
TO220 ,D-PAK ,D2-PAK ,DIP |
| Test Station |
8（Vertical 2 x Horizontal 4st |
| Throughput |
8000pcs/h (TO220 including soak time 120s) |
| Device Unloader |
Stocker Height 260 mm × 2 |
| Device Loader |
Autoloader Stocker Height 260 mm × 2(1category) Manual loader 4 categories (Manually set a stick in each loader) |
FEATURES
Heating time : 50min（155℃）,Cooling time :40min（-55℃）
Temperature Accuracy ±2℃(50～150℃,－50～0℃)
Integrate a cooling function for a prevention of heat deformation, and a heat-up function for dew condensation .
Integrate Tube Opener for fail-less loading
