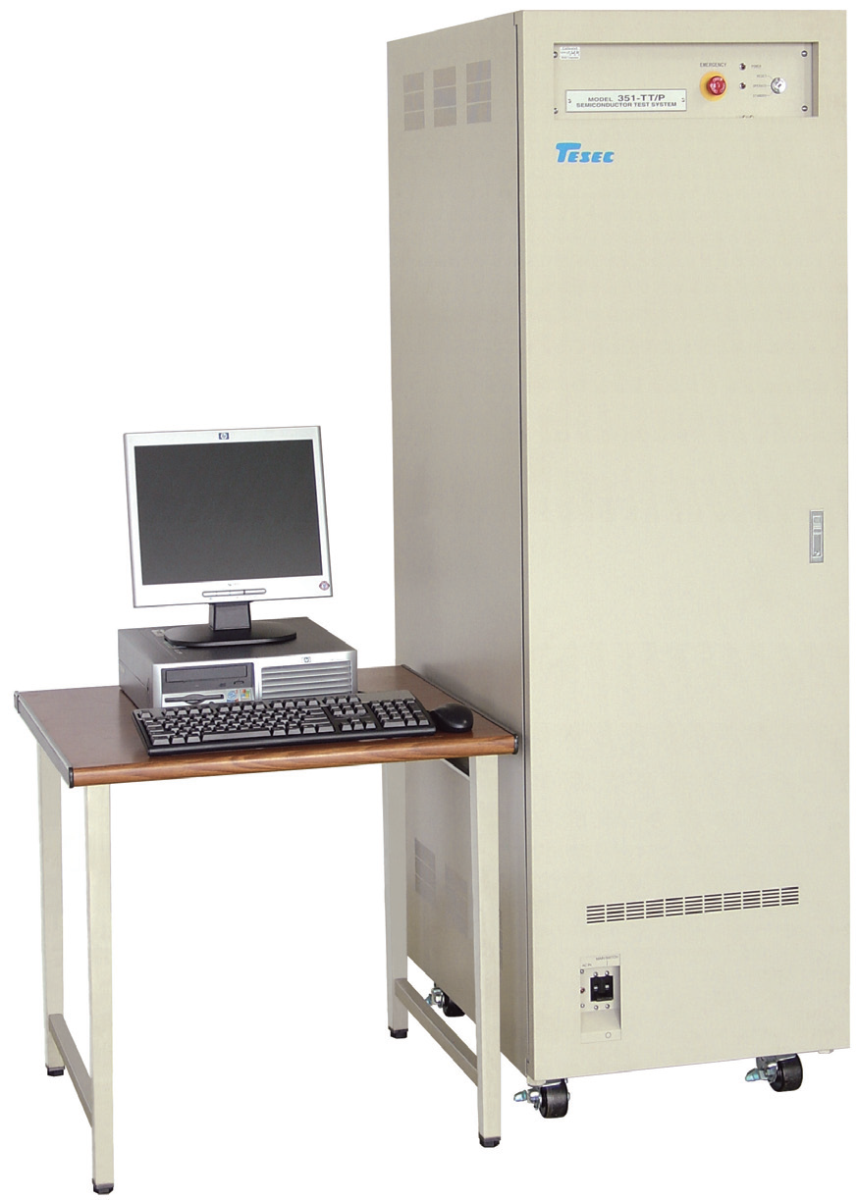

The 341-TT/A test system performs testing of 3-pin devices (5-pin optional). The voltage and current ratings of the tester mainframe is 1.2kV and 20A.
| Specifications |
|
Standard device
|
Transistor, Diode, Zener Diode |
|
Optional device
|
FET, Dual-gate FET, Thyristor, Voltage Regulator, Opto device, Array device, IGBT |
|
Test station
|
5 |
|
Voltage/Current
|
1kV/20A |
|
Extended test capability
|
5kV & 1200A option |
|
Pinout
|
3 pins |
|
Maximum bias conditions
|
2-bias |
| High voltage option |
3kV/4kV/5kV |
|
High current option
|
200A/600A/1200A |
|
Data display
|
4-digit |
|
Test plan
|
250 |
|
Sort plan
|
250 |
|
Test method
|
TBB/TBS |
|
Test time
|
380μs-9.99s |
|
Relay time
|
3ms |
|
CPU time
|
0.64-4.0ms/test |
|
Control CPU
|
68000 |
|
Operating system
|
Microsoft(R) Windows(R) XP |
|
Host PC interface
|
RS-232C |
|
Electrical power
|
AC100-240V 550VA |
|
Dimension (WxDxH)
|
540x750x1010mm |
|
Weight
|
140kg |
|
Previous model
|
881-TT0 |
|
Options
|
Software: Host link, Wafer mapping, Data file editor, Counter editor, Data analysis package, Excel data file converter |
FEATUREStesting of devices up to 5 pins (optional)
4 bias setting
automatic self diagnostic function for measurement accuracy
measurement
software based on Windows
