商品詳細介紹Product Introduction

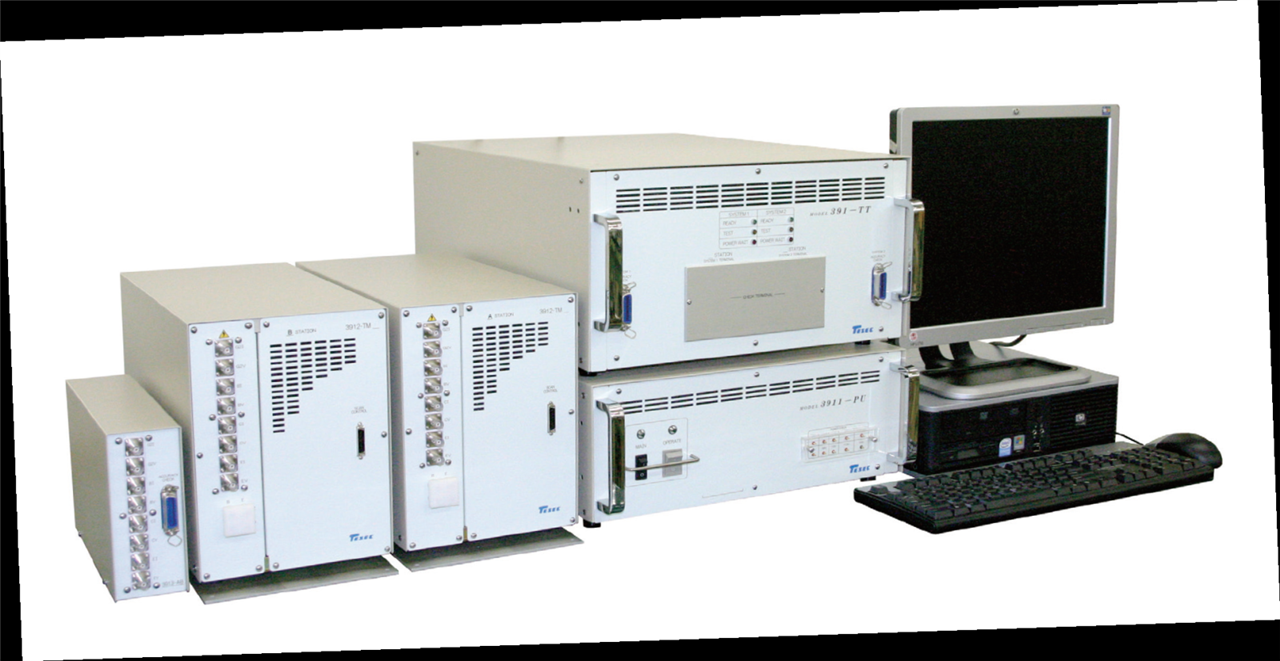

391-TT
The 971-TT/B performs parallel testing of 4-pin small signal devices. Using Microsoft Windows and GPIB I/F, 1 PC can control up to 4sets of 971-TT/B (Max 8 test stations). This tester has switching function to an external tester. The 391-TT has a capability upto 10A and performs synchronous testing in addition to parallel testing.
| Specifications |
|
System component
|
Mainframe 9712-TM Head box |
|
Standard device
|
Transistor, Diode, Zener Diode, FET, Dual-get FET |
|
Test station
|
2 parallel |
|
Voltage /Current
|
600V / 9.99A (Capability upto 10A) |
|
Extended test capability
|
- |
|
Maximum bias conditions
|
3-bias |
|
Data display
|
4-digit |
|
Test plan
|
500 |
|
Sort plan
|
250 |
|
Relay time
|
2ms |
|
CPU time
|
400μs |
|
Host CPU
|
PC |
|
Control CPU
|
68000 |
|
Operating system
|
Microsoft(R) Windows(R) XP |
|
Host PC interface
|
GP-IB |
|
Electrical power
|
AC100-120V 250VA |
|
Dimension (WxDxH)
|
Mainframe : 430x550x250mm
Head box : 185x360x250mm |
|
Previous model
|
971-TT |
|
Options
|
Data analysis software |
FEATURES
Parallel Measurement
Synchronous Measurement (391-TT)
600V/10A Capability (391-TT)
Test Method
TBB : Test By Branch
TBS : Test By Sort
Optional Software
Data Analysis
