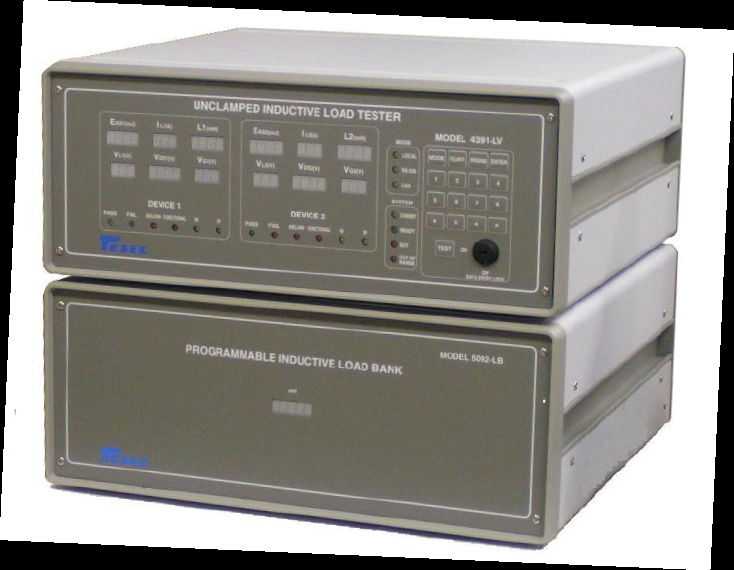

4391-LV
The 4391-LV is a programmable coil type inductive load tester for MOSFET.It observes the waveforms of VD and ID at the turn off of the MOSFET and judges whether the voltage raised by the inductance passes within the limited range of V-Gate.
| Specifications |
| Maximum IL Current (Ids) |
200A 0.5-99.9A/0.1A resolution 100-200A/1.0A resolution |
| Maximum Voltage(Vds) |
1500V |
| Gate Voltage(Vds) |
20.0V/0.1 step |
| Inductive load bank |
programmable 10uH - 99.99mH/10uH step |
FEATURES
Programmable Inductive Load Coil(10uH-99.99mH)
Kelvin Test, Pre and Post Open/Short Test
Single/Dual Die Test
N/P Channel
Typical Test Time=50ms
Current and Voltage Waveforms are captured,stored and analyzed
Energy Compensatiom(Watchdog monitor measured value against Program and implements correction as needed)
