3041-R

料號：3041-R

商品詳細介紹Product Introduction

3041-R

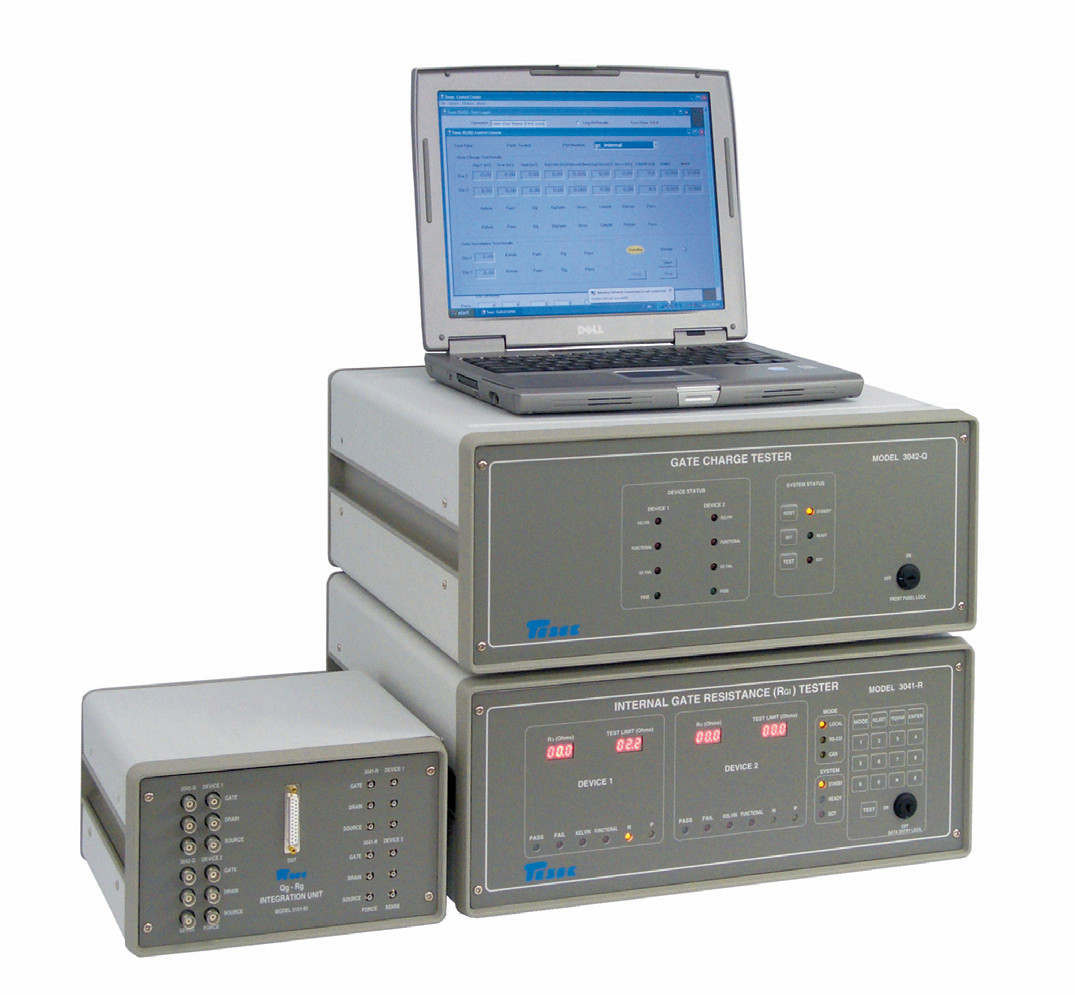

The Internal Gate Resistance Tester 3041-R measures the internal gate resistance of MOSFET.
This tester is equipped with CONTACT CHECK and OPEN / SHORT test functions, and performs high volume production testing.

Specifications
Parameter	Range	Resolution	Unit
Internal gate resistance	0.5 to 99.9	0.1	Ohms
Sine wave source	0.1 to 3.0 (1.0Vpp)	0.00365	MHz
DC constant current source	10	N/A	mA
Input D.U.T. capacitance	600 to 6000	N/A	pF
Test time	60 to 110	5	ms

FEATURES

Single or dual die MOSFET device test
N channel, P channel or combination device test
Standard Tester / Handler interface
Kelvin test with 10 mA constant current
Device Functional pre-test [Open/short]
Auto or Manual test operation
User-friendly interface, data logging, program editor, and test summary
Networking capability (option)
Simple calibration procedure.
